Features:
- Designed to test components of the automotive exhaust system, e.g., heat exchangers
- Developed for thermal shock testing
- Static pressures adjustable from 1 to max. 10 bar
- Flow rate adjustable from 0 to max. 100 l/min
- Automatic leak detection (with automatic shutdown)
- Test bench dimensions: 2500 x 2000 x 1500 mm (W x H x D)
- Internal dimensions of the chamber: 1000 x 800 x 600 mm (W x H x D)
- Nominal power: 50 kW
- Operating medium: Glycol / water
- Pressure range: 1 … 10 bar
- Basic flow rate up to approx. 100 l/min
- Pressure signal form: Static
- Medium temperature range: -30 … +125°C
- Number of test specimens: 8

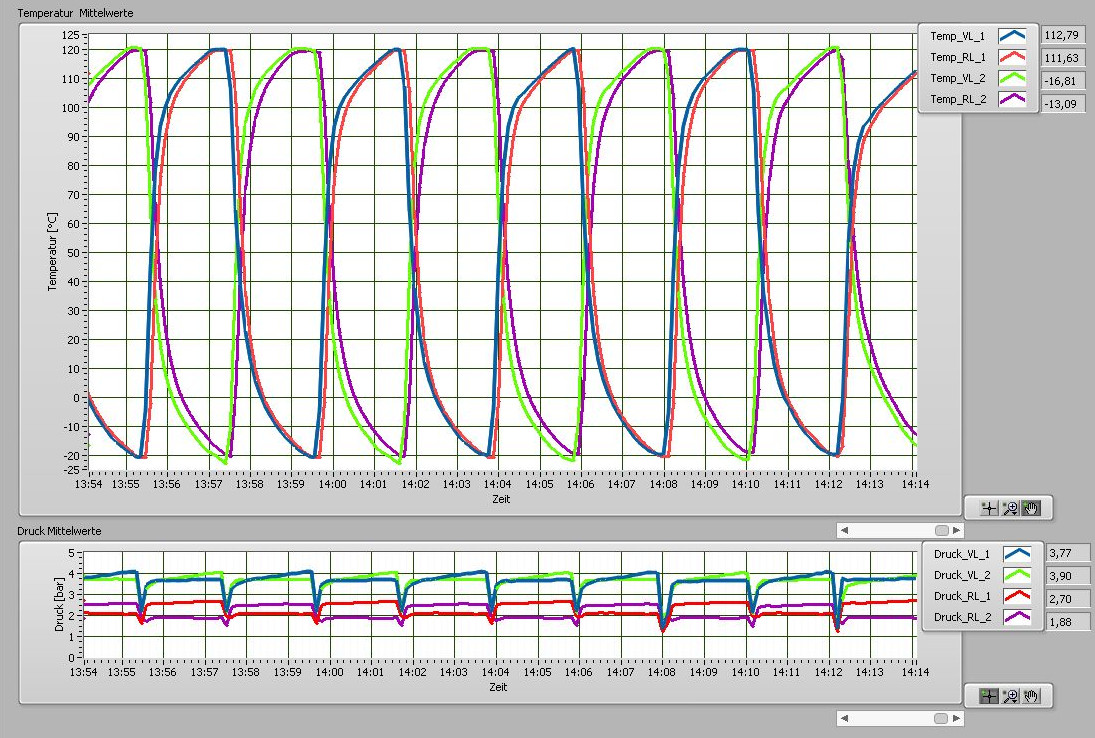

Temperature and pressure curve during thermal shock, from 120°C to -20°C, cycle time 2 minutes
