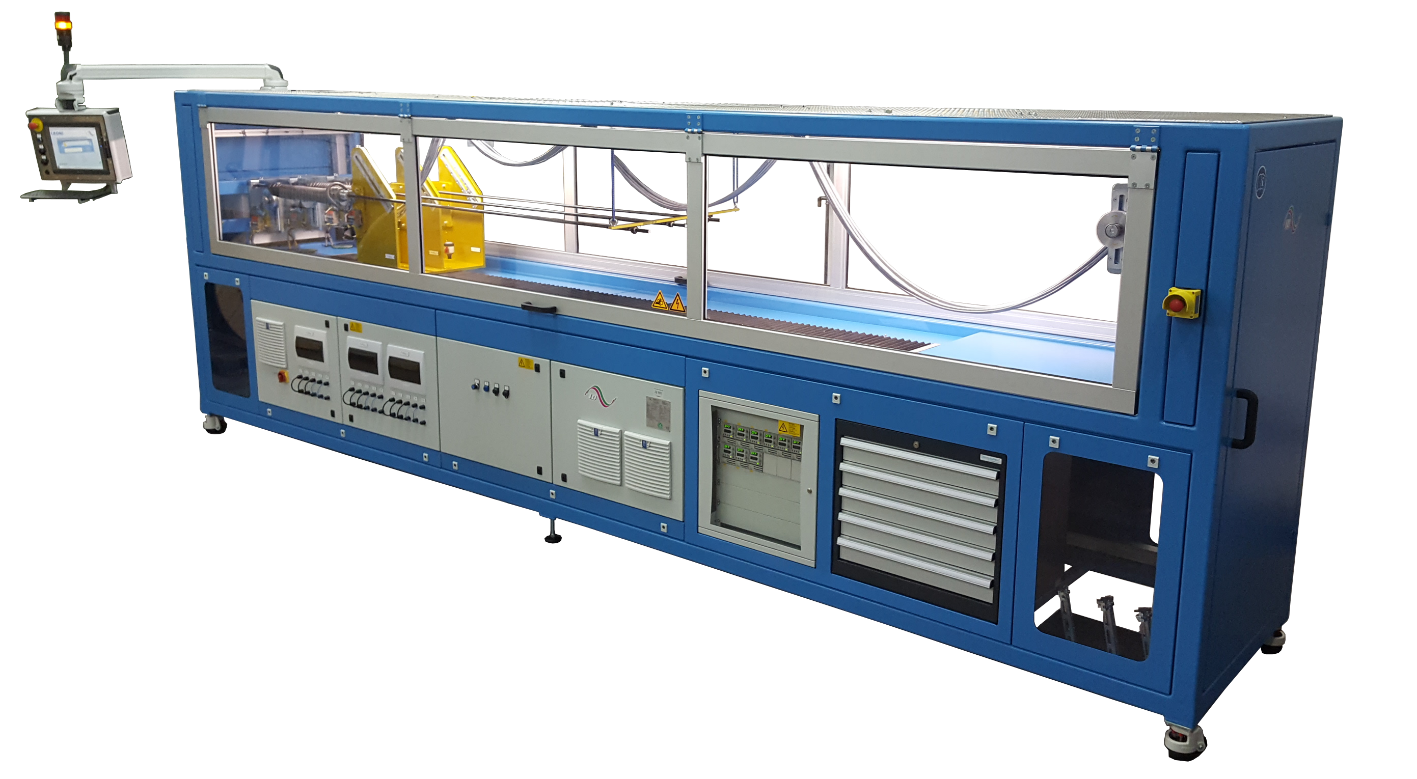

Flexural fatigue test rig for spiral cables

- The flexural fatigue and spiral cable test bench is designed and built for functional testing of various test parts (cables).

- Specially developed for long-term testing

- Tests can be performed on the main wires with a defined current of up to 32A and superimposed mains voltage, as well as on the secondary wires with 100 mA without superimposed mains voltage

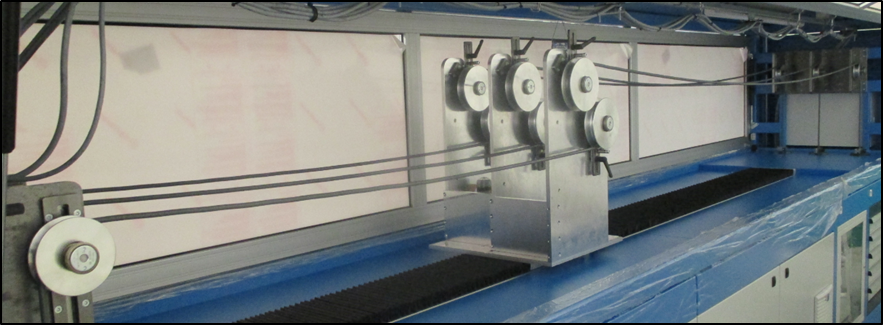

- Automatic stretching (spiral cables) or bending (normal cables)

- Operation of the test bench via a touch panel on the swivel arm

- Test bench dimensions (without pendulum): 6000 x 2178 x 1100 mm (W x H x D)

- Weight approx. (empty): 2300 kg

- Travel distance of movement unit: 0 … 3000 mm

- Travel speed of movement unit: 0 … 0.5 m/s

- Nominal power: 6870 W

- Nominal current: 30 A

- Customer-supplied backup fuse: 32 A

- Test specimens: normal cables, spiral cables, automotive charging cables

- Number of test specimens: 3 identical test specimens

- Tests that can be performed:

o e.g. for functional tests according to DIN EN 50396: (6.2 / 9.2)
