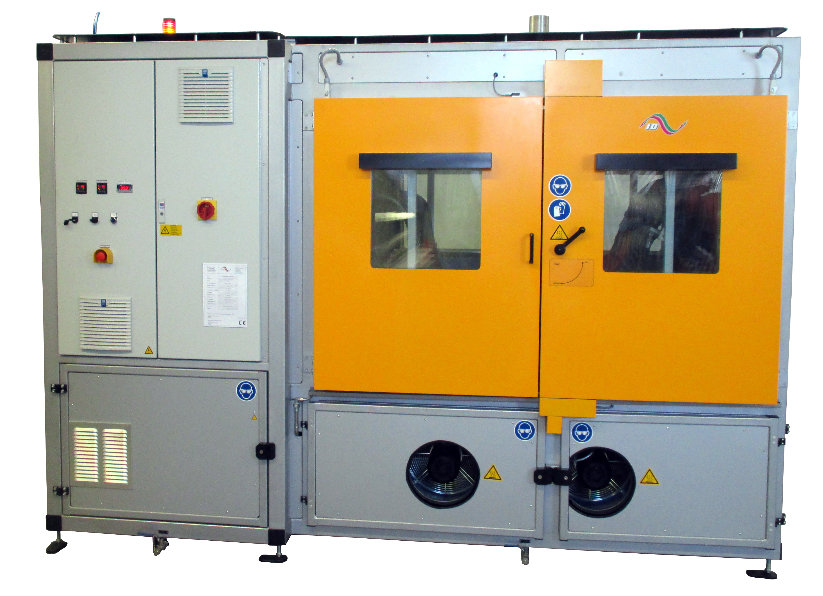

Features:
- Designed to test components of the automotive cooling water circuit, in particular plastic pipes
- Specially built for long-term testing
- Adjustable static pressure conditions in the range from 0 to max. 5 bar
- Adjustable flow rate per test specimen from 0 to 5000 l/h / test part
- Maximum total flow rate 50000 l/h
- Explosion protection class 1, through indirect chamber heating, etc.
- Automatic leak detection and leak test (with or without automatic shutdown of failed test specimens)
- Chamber access possible from the front and rear (4-door design)
- Available with water or optional air recooling by means of a fan
- Control and measurement data storage, Windows-based
- Test bench dimensions: 3400 x 2500 x 1600 mm (W x H x D)
- Internal dimensions of the chamber: 1790 x 1000 x 1200 mm (W x H x D)
- Nominal power: 46 kW
- Operating medium: glycol/water
- Pressure range: 0 ... 5 bar
- Basic flow rate up to approx. 50,000 l/h
- Pressure signal form: static
- Temperature range of the medium: 40 ... +150°C
- Temperature range of the chamber: 40 … +150°C

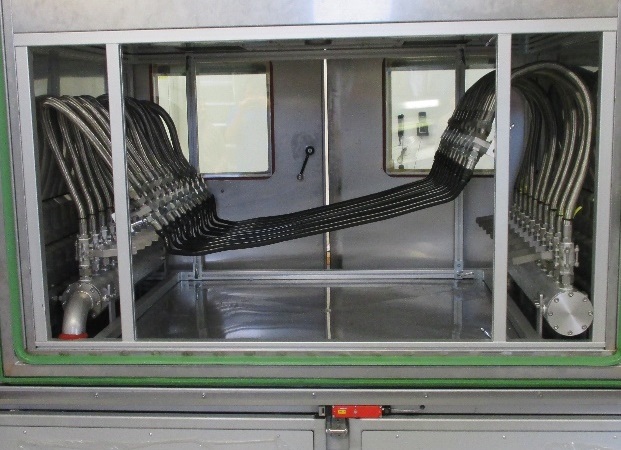

- Number of test specimens: 10
- Examples of tests that can be performed:
o BMW: LH 10356681-000-03 (6.2.2.13.2)
o BMW: LH 10356682-000-02 (6.2.2.9
